How to Save Gas in your Ethereum Smart Contracts

Gas is a fee mechanism implemented by Ethereum to help with transactions. This fee is a fraction of the transaction presented in Wei, which is 10-12 of an Ether. Total fee price depends on the size of the smart contract and its functionality.

This fee price is dependent on the supply and demand and it is used as a payment for the resources consumed by miners in order to process and validate the transaction to the Ethereum Blockchain. With every operation performed, some cost is added for the transaction. A table of the average cost per transaction can be seen below.

Operation Gas Description
ADD/SUB 3 Arithmetic operation
MUL/DIV 5 Arithmetic operation
ADDMOD/MULMOD 8 Arithmetic operation
AND/OR/XOR 3 Bitwise logic operation
LT/GT/SLT/SGT/EQ 3 Comparison operation
POP 2 Stack operation
PUSH/DUP/SWAP 3 Stack operation
MLOAD/MSTORE 3 Memory operation
JUMP 8 Unconditional jump
JUMPI 10 Conditional jump
SLOAD 200 Storage operation
SSTORE 5,000/20,000 Storage operation
BALANCE 400 Get balance of an account
CREATE 32,000 Create a new account using CREATE
CALL 25,000 Create a new account using CALL

Source: StackOverflow

Save on data types

It is better to use uint256 and bytes32 than using uint8 for example. While it seems like uint8 will consume less gas than uint256 it is not true, since the Ethereum virtual Machine(EVM) will still occupy 256 bits, fill 8 bits with the uint variable and fill the extra bites with zeros. In order to verify the following contract was deployed.

pragma solidity ^0.8.1;

contract SaveGas {

    uint8 resulta = 0;
    uint resultb = 0;

    function UseUint() external returns (uint) {
        uint selectedRange = 50;
        for (uint i=0; i < selectedRange; i++) {
            resultb += 1;
        }
        return resultb;
    }

    function UseUInt8() external returns (uint8){
        uint8 selectedRange = 50;
        for (uint8 i=0; i < selectedRange; i++) {
            resulta += 1;
        }
        return resulta;
    }
}

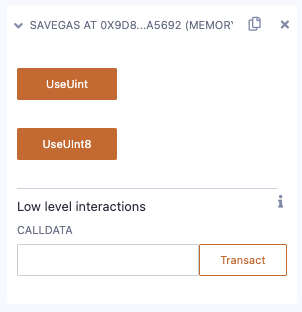

So after compiling and deploying the smart contract the functions are available for execution.

Firstly executing UseUint the following execution cost is presented:

transaction cost141654 gas
execution cost120382 gas

Next running UseUint8 the execution cost is:

transaction cost187383 gas
execution cost166111 gas

So the execution cost of running uint8 instead of uint256 is higher and the reason is the extra operations for conversions required by the EVM.

Enable optimiztion

Ethereum’s remix IDE allows to enable optimization, which can increase complexity in a smart contract, but can save on fees. In order to test it the previous badly written contract is complied and deployed again.

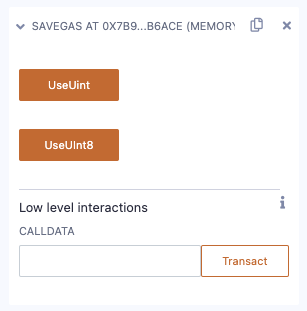

Now that the new contract is deployed, the same functions are executed and can be seen below:

UseUint

transaction cost132295 gas
execution cost111023 gas

UseUint8

transaction cost178253 gas
execution cost156981 gas

The cost for execution was decreased by almost 10%, while using the default optimization of 200. For complicated smart contracts optimization should be increased over 200, so something like 10.000 should be enough, but it was identified that optimization past 20.000 had no benefits.

Access data from memory and not from storage

In our example the contract stores 2 variable on its storage, resulta and resultb. While this is ok, both the UseUint and UseUint8 functions loop 50 times over the result variable, accessing it from the storage every single time. Because accessing the memory is cheaper and faster, before going through the loop, the storage variables can be stored in memory. So reulta will be resultaMem and resultb will be resultbMem, like shown below.

pragma solidity ^0.8.1;

contract SaveGas {

    uint8 resulta = 0;
    uint resultb = 0;

    function UseUint() external returns (uint) {
        uint selectedRange = 50;
        uint resultbMem = resultb;
        for (uint i=0; i < selectedRange; i++) {
            resultbMem += 1;
        }
        return resultbMem;
    }

    function UseUInt8() external returns (uint8){
        uint8 selectedRange = 50;
        uint8 resultaMem = resulta;
        for (uint8 i=0; i < selectedRange; i++) {
            resultaMem += 1;
        }
        return resultaMem;
    }
}

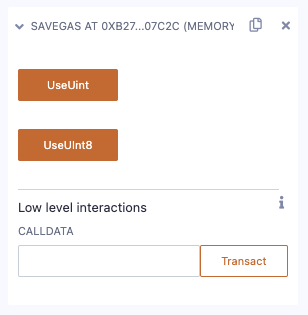

Now one again, compile and deploy the smart contract to observe how the cost has change.

UseUint

transaction cost31951 gas
execution cost10679 gas

UseUint8

transaction cost34506 gas
execution cost13234 gas

With a small edit, the cost of this contract is decreased by a tenfold, which is great. From 111k gas it went to 10k gas for Uint and for Uint8 it went from 160k gas to 13k gas.

Further Reading

There are more and more thing you should take into consideration before deploying your mart contract in production.
